Introduction

ndfilters is a library of n-dimensional image filters similar to those in scipy.ndimage, but accelerated and parallelized using the Numba just-in-time compiler.

Compared to their scipy.ndimage equivalents, the filters in this library offer some additional capabilities:

• Axis selection. Every filter accepts an axis argument, so the kernel can be applied to any subset of the array’s axes while the remaining axes act as batch dimensions.

• Masking. A boolean where mask excludes selected elements of the input array from the calculation.

• Physical units. Inputs can be either numpy.ndarray or astropy.units.Quantity instances.

• Varying kernels. The convolution kernel is allowed to change along axes orthogonal to the convolution axes.

The following filters are currently implemented:

• ndfilters.mean_filter(), a multidimensional rolling mean.

• ndfilters.trimmed_mean_filter(), a rolling mean that ignores a given portion of the dataset at each pixel.

• ndfilters.median_filter(), a multidimensional rolling median.

• ndfilters.variance_filter(), a multidimensional rolling variance.

• ndfilters.generic_filter(), a rolling filter that applies an arbitrary compiled function to each kernel footprint.

• ndfilters.convolve(), a multidimensional convolution with support for spatially-varying kernels.

Differences from scipy.ndimage

Where a filter in this library has a scipy.ndimage counterpart, the two agree except in the following cases.

• Boundary modes. Only "mirror", "nearest", and "wrap" are supported, plus "truncate", which has no scipy.ndimage equivalent and simply drops the parts of the kernel that fall outside the array. SciPy’s "reflect", "constant", and "grid-*" modes raise a ValueError here.

• Integer input. Integer arrays are promoted to floating point, so the result is a float and is not truncated. scipy.ndimage returns the dtype of the input, and for the separable filters it truncates its intermediates as well. The promotion is what lets a where mask that excludes an entire kernel footprint return numpy.nan.

• Even-sized median footprints. ndfilters.median_filter() averages the two middle elements, like numpy.median(), while scipy.ndimage.median_filter() selects the element of rank size // 2, the larger of the two. SciPy’s convention keeps the result in the dtype of the input and never introduces a value that was not already in the footprint, but it is a biased estimator: on unit-variance noise a size=2 filter shifts the signal by roughly 0.57. The two conventions agree exactly for odd-sized footprints.

Installation

ndfilters is published on PyPI and can be installed using:

pip install ndfilters

Quickstart

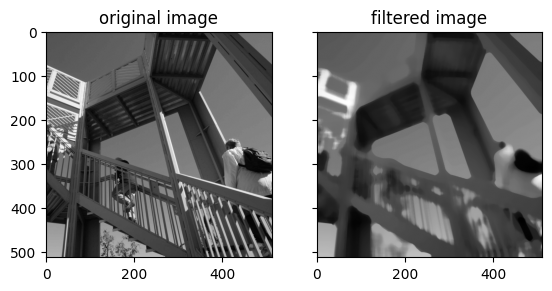

Every filter takes an array and the shape of the kernel, and returns the filtered array. As an example, here is a median filter applied to a sample image:

import matplotlib.pyplot as plt
import scipy.datasets
import ndfilters

img = scipy.datasets.ascent()
img_filtered = ndfilters.median_filter(img, size=21)

fig, axs = plt.subplots(ncols=2, sharex=True, sharey=True)
axs[0].set_title("original image");
axs[0].imshow(img, cmap="gray");
axs[1].set_title("filtered image");
axs[1].imshow(img_filtered, cmap="gray");

See the documentation of each filter in the API reference below for more examples.

API Reference

ndfilters

Numba-accelerated, n-dimensional filters similar to those in scipy.ndimage.
